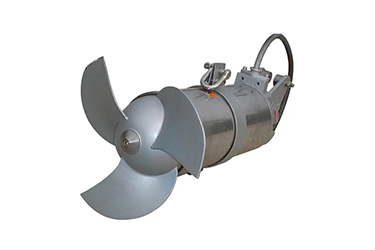

Submersible Mixer
The submersible mixers are available in so many different designs that it is always possible to find the optimal combination of the required raw strength, process requirements and the shortest possible operating time to minimise energy consumption, wear and noise level. It is a mechanical device that is used to mix sludge tanks and other liquid volumes. Submersible mixers are often used in sewage treatment plants to keep solids in suspension in the various process tanks and/or sludge holding tanks.
Applications:
- Activated sludge treatment such as conventional ASP or sequencing batch reactor
- Sludge holding tanks
- Equalization tanks
- Pump station mixing
- Grit chamber mixing
- Chlorination basins
- Paper pulp chests
- Quenching tanks
Features :
- The two rows of independent mechanical sealing ensure the long-term and reliable operation of the submersible motor.
- The international well-know high-quality bearings have longer service life, which is maintain free.
- The unique sealing design for the cables removes the hidden danger of water leakage of the cables.
- The shaft of the motor employs the stainless steel, and the rotors are inspected with the use of dynamic balancing, leading to smooth rotation.
- The in-built leakage sensor and the device for the over temperature protection for the windings of the stator(No leakage sensorfor MA0.37/6 or MA0.55/4).
- The mixer agitators have the stainless steel pressing impeller, which are of the sweptback shape through the optimized design, resulted in high efficiency and self-cleaning function.
- The vanes of the low-speed flow propeller are made of FRP, which are sweptback shape, have the self-cleaning function, thesmooth and streamlined propeller surface distribut6es the propelling power equally.
